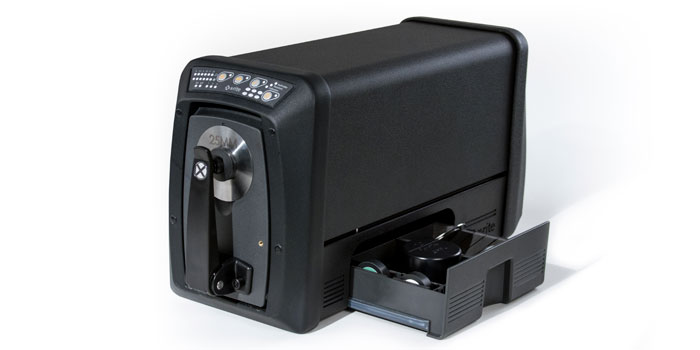

Ci7830 Sphere Benchtop Spectrophotometer

Category: Machinery

Subcategory: X-Rite

Brand: Xrite

Principal: X-rite

Short Description: * Ideal for formulation or QC with strict tolerances * Offers ≤0.08 dE* inter-instrument agreement and ≤0.01 dE*repeatability * Provides measurement flexibility with switchable reflectance apertures

Get a Quote

The Ci7830 can measure opaque, brightened and non-brightened samples. However, with tighter inter-instrument agreement and repeatability, it's ideal for manufacturers that need to seamlessly communicate, share, and coordinate color-critical values and specifications. The Ci7830 works with X-Rite Color iQC quality assurance software to quickly identify whether a sample is within tolerance, and if not, provides direct feedback to get it on target. Embedded NetProfiler status lights verify device is optimized for measurement performance.

≤0.08 dE*                                                                    ≤0.01 dE*                                            d/8° Sphere

Inter-Instrument Agreement                                      Repeatability                                       Device Geometry



Versatile Color Measurement for Regular and Brightened Samples

The Ci7830 offers up to five reflectance apertures to measure color and appearance on a wide range of samples in port up, port down, and port forward positions. It can be fitted with various accessories to measure textured materials, odd shapes, liquids, and powders, and uses up to 3 UV filters to control optical brighteners in textiles, plastics, paint, coatings, and paper.

Ensure Operator Confidence and Quality Control

The Ci7830 delivers consistent configuration across all locations and eliminates the potential for error using automated, software-driven setup. The on-board digital camera with preview and active targeting guarantees accurate selection of measurement area. It can also capture images for future retrieval so any smudges, scratches or imperfections can be detected and accompany the measurement data for audit.



maintains performance

Maintains Performance



The Ci7000 Series is stable and will notify the operator if calibration is required to maintain measurement accuracy.

Sensors

Temperature and Humidity Sensors



Instrument humidity and temperature sensors above the drawer ensure the environment is suitable for measurements.

total color solution

Total Color Solution



Pairs with X-Rite formulation, quality control, and quality assurance software to accurately formulate, verify measurement details, pinpoint issues, and optimize device performance.

CalibrationWhite, Zero, UV
Communication InterfaceUSB 2.1
Dimensions (length, width, height)56cm, 22cm, 31cm
Embedded NetProfiler SupportYes
Humidity5% to 85%, non-condensing
Illumination Spot Size25mm, 17mm, 10mm, 6mm, 3.5mm* (optional)
Inter-Instrument Agreement0.08 Avg. DE CIELAB
Internal Temperature & Humidity SensorYes
Lamp Life≥1,000,000 measurements
Light SourcePulsed Xenon, D65 calibrated
Measurement Cycle Time≈ 2.5 seconds
Measurement Geometryd/8°
Measurement Spot19mm, 10mm, 5mm, 2.5mm
Measurement Time≈ 2.5 seconds
Operating Temperature Range5°C to 40°C
Package Dimensions (length, width, height)71cm, 38cm, 53cm
Photometric Range0% to 200%
Photometric Resolution0.0001
Reflectance Aperture(s)4 std / 1 optional
Sample PreviewDoor and Video
Service IndicatorStatus panel
Shipped Weight25kg
Short Term Repeatability - White0.01 DE*
Software Development KitXDS4
Spectral Analyzer2D CCD array holographic grating
Spectral Interval10 nm (default), 5nm, 20nm
Spectral Range360-780nm
Spectral Reporting10 nm (default); 20nm
Status PanelYes
Storage Temperature Range-20° to 50°C
Transform SupportEmbedded
Transmission Aperture(s)0
UV Cutoff FiltersStd 400 (optional 420 / 460)
Voltage100 to 240 VAC / 50 to 60Hz
Warm Up TimeNone
Warranty12 months
Weight20.5kg
What's Included?Instrument with white calibration standard, black trap, green standard, UV cal standard, Aperture plates, manual(CD), AC adapter, USB cable
