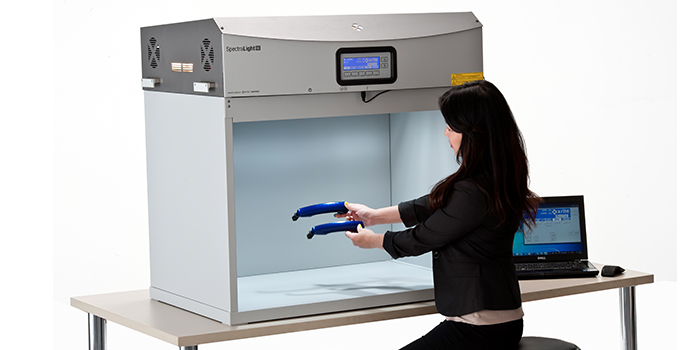

SpectraLight QC

Category: Machinery

Subcategory: X-Rite

Brand: Xrite

Principal: X-rite

Short Description: For the Most Critical Visual Assessment Includes 7 light sources including dimmable filtered-tungsten halogen daylight and optional LED Ensures consistent visual assessment across a supply chain Offers unprecedented reporting and traceability

Get a Quote

7 Versatile Light Source Options : The SpectraLight QC offers seven light sources. This includes the best quality daylight available, CIE Daylight, Cool White Fluorescent, Incandescent “A” & 2300K/Horizon, UVA, two fluorescent types (choice of U30, U35, TL83, and TL84) and choice of LED light sources (3500K, 4000K or 5000k). The SpectraLight QC also offers instant power-up and an indicator light to ensure operators of optimum stability.

Ensure Comprehensive Visual Assessment : The SpectraLight QC can help build standard operating procedures across the supply chain with settings for every program, custom profiles based on brand owner requirements for light source, illumination, and other parameters, and unprecedented reporting and traceability. SpectraLight QC enables checkpoints for approvals across the supply chain, from the vendor and the sourcing office all the way up to product design and corporate quality control. When used as a holistic solution, the SpectraLight QC reduces human error, standardizes conditions for visual assessment, and saves time and money.

Best-in-Class Global Service and Support : X-Rite has been helping customers master color quality for 60+ years. With global service centers and 40+ certified service partners, our comprehensive support includes technical assistance, ISO certification, Service Care Plans, training, and more. Whether troubleshooting issues, optimizing workflows, or staying current with the latest technology, you can trust our service and support teams to provide prompt and reliable assistance to minimize disruptions.

Standards Compliance
The gold standard, complying with ISO: 3664, 3668, 13076, 23603, AATCC: EP9, ASTM: D1729, SAE: J361, DIN: 6173, CIE: S012/E, 51.2, and BSI: BS 950 Pt.2
Built-In Sensors and Calibration
Built-in sensors monitor and correct UV output and maintain inter-instrument agreement and a counter shows total hours each light source has been used.
Standard Size Viewing Area
The SpectraLight QC offers a standard size internal viewing area that measures D23 x H23 x W35 in. (D58 x H58 x W90 cm.)

CalibrationYes
Communication InterfaceTouchpad
Dimensions (depth, width, height)D 24 in x W 37.2 in x  H 37.5 in / D 61.0 cm x  W 94.5 cm x H 95.0 cm
HumidityRh 0 to 95% max (non-condensing)
Industry Standards

ISO: 3664, 3668, 13076, 23603

AATCC: EP9

ASTM: D1729

SAE: J361

DIN: 6173

CIE: S012/E, 51.2

BSI: BS 950 Pt.2

Instrument DisplayLCD Screen
Lamp Life400-2000hrs
Lamp TimerYes
Languages SupportedEnglish/Chinese
Light Level AdjustmentDigital
Light Level SensorYes
Light SourceD50 or D65,
Horizon,
UVA,
CIE A,
Two of either TL84, U30, U35,
One of either CWF, LED 3500K, LED 4000K or LED 5000K
MaterialSteel
Operating Temperature Range32°F to 95°F / 0°C to 35°C
Shipped Weight173 lb. / 78.5 kg.
SafetyUL Listed
Service IndicatorYes
Shipped Weight116.8 lbs / 53.0 kg
Storage Temperature Range-40°F to 158°F / -40°C to 70°C
Total Light Sources7
Unit ColorMunsell N7
UV Metamerism IndexGrade B
Viewing Area (depth, width, height)D 23 in x W 35 in x H 23 in / D 58 cm x W 90cm x H 58 cm
Visible Metamerism IndexGrade A/B
Voltage100, 115, 230V
Warm Up TimeInstant On
Warranty1-2 year
Wattage1150W
Weight112 lbs / 50.5 kg
